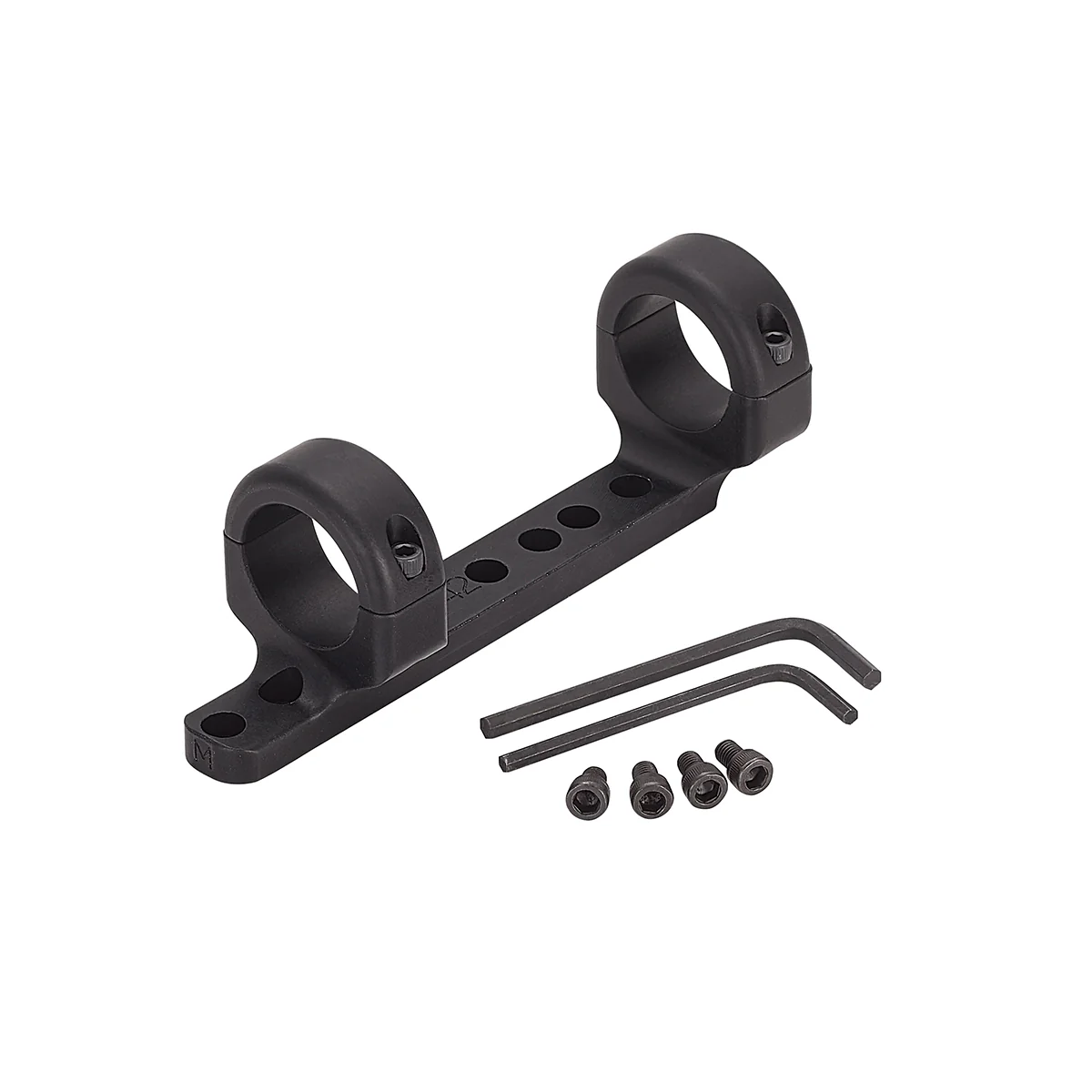

Henry DNZ 4 Hole Receiver Game Reaper Mount

Henry DNZ 4 Hole Receiver Game Reaper Mount

Select Color
From $25.18

Original: $71.95

-65%
Henry DNZ 4 Hole Receiver Game Reaper Mount—

$71.95

$25.18

The Story

1" Medium for all of our models utilizing the Weaver 63B pattern including all of our H009, H010, H023, H024, H027 series including X Models and otherwise.

Choose between Black or Silver.

Base screws are 8-40 X 1/4" long. Ring screws are 6-40 X 5/8" long. Base screws use a 9/64" Allen wrench and ring screws use a 7/64" Allen wrench.

Outside to outside of rings is 4.08". Standard rings are .63" wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50", 1.88", .50", .37", .50". Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used.  Height of mount from top of receiver to centerline of scope tube is - medium 1.06", high 1.19".

Made In USA

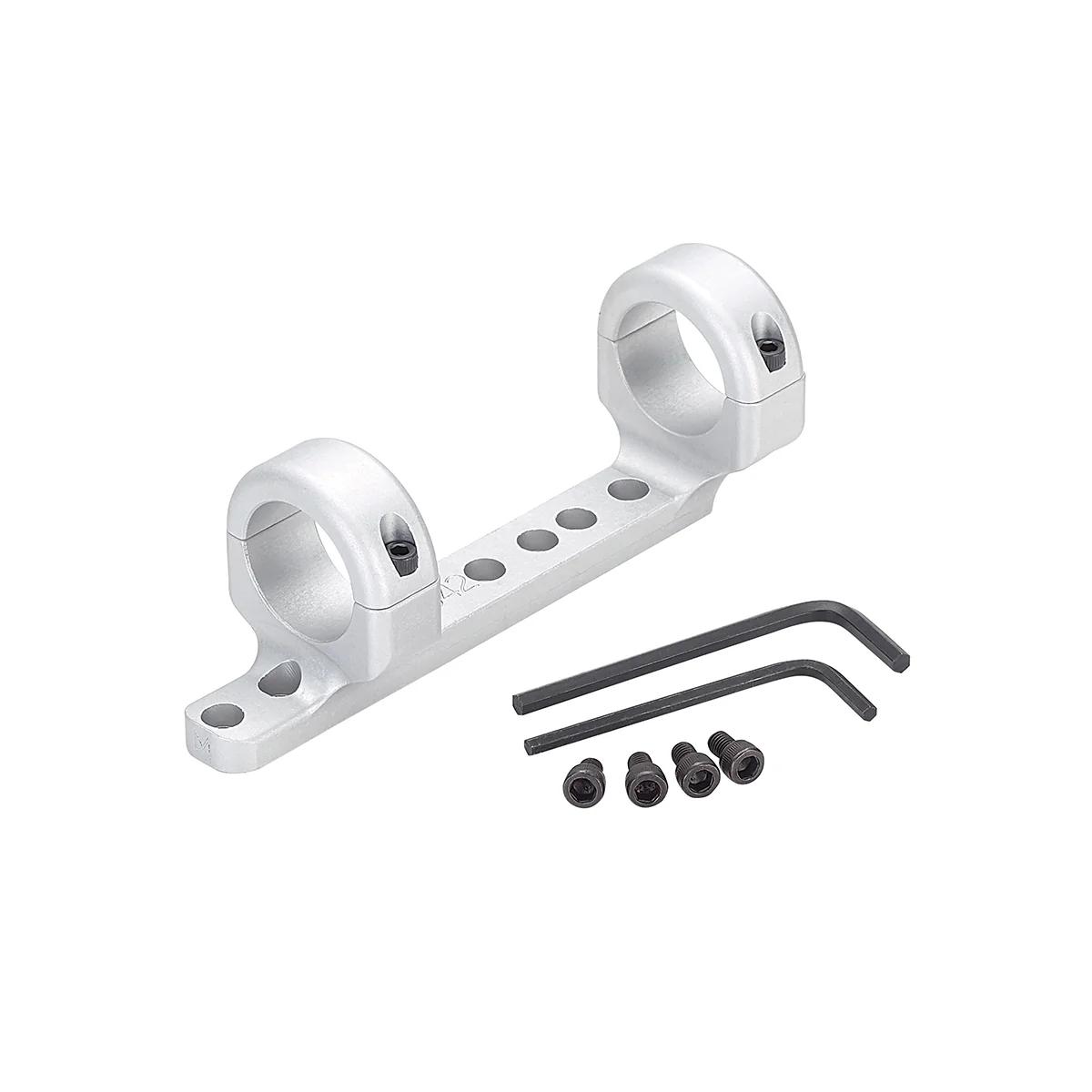

Henry DNZ 4 Hole Receiver Game Reaper Mount - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

1" Medium for all of our models utilizing the Weaver 63B pattern including all of our H009, H010, H023, H024, H027 series including X Models and otherwise.

Choose between Black or Silver.

Base screws are 8-40 X 1/4" long. Ring screws are 6-40 X 5/8" long. Base screws use a 9/64" Allen wrench and ring screws use a 7/64" Allen wrench.

Outside to outside of rings is 4.08". Standard rings are .63" wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50", 1.88", .50", .37", .50". Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used.  Height of mount from top of receiver to centerline of scope tube is - medium 1.06", high 1.19".

Made In USA
